Description

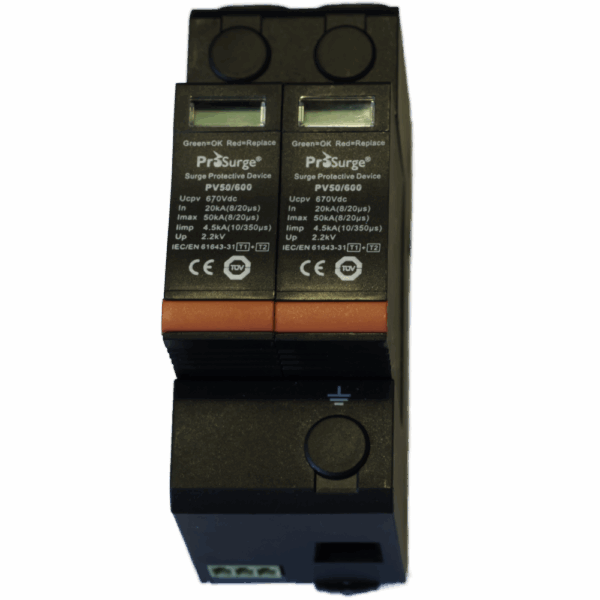

ProSurge PV50/600 SPD is Surge Protection Device for solar PV in compact 2 modules form factor!

This is combined T1 + T2 device

Series: PV50
SPD Category: IEC61643-11/31, EN61643-31; Class I+II; Type 1+2
Connection Type: Parallel Connected
Ports: 1
System Voltage (Vdc) Un: 48~1500 Vdc
Lightning Impulse Current (Iimp): 4.5kA
Max. Discharge Current (Imax): 50kA
Nominal Discharge Current (In): 20kA
Protection Mode: “+”/”-“ to Ground, “+” to “–“
Short-Circuit Current Rating (Iscpv): 25kA
Failure Indicators: Flag indicator (red – failure)
Remote Alarms: Isolated Form C; AC: 250V/0.5A, DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Location: Indoor
Enclosure Rating: IP20, UL94 V0
Power Connecting: Single-strand 35mm²; multi-strand 25mm²
Signal Cable (Remote Alarm): Max. 1.5mm² (or #16AWG)
Working Environments: Temperature -40℃ to +85℃, Humidity 5-95% (25℃), Altitude ≤4km
Storage: Temperature 0℃ to +45℃, Humidity ≤75% (25℃)
Dimensions (W x D x H): 90x18x67mm (1 pole)
Approvals/Certifications: TUV, CE
