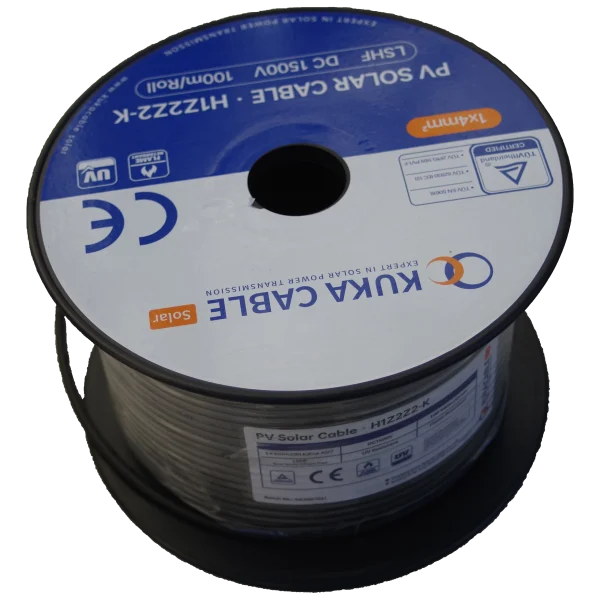

4mm² H1Z2Z2-K Solar Cable TÜV 1500V (100m reel)
For photovoltaic power applications.

Standards:

• TÜV EN50618 H1Z2Z2-K
• IEC62930

Cable Construction:

• Conductor: Class 5 flexible tinned copper, acc. to DIN VDE 0295 / IEC EN 60228
• Stranding: 56×0.29mm ± 0.008mm
• Insulation: XLPO, flame retardant, halogen-free, electron-beam cross-linked
• Outer Diameter: 5.5mm ± 0.2mm
• Jacket Thickness: 0.7mm
• Color: Black

Mechanical Features:

• Minimum Bending Radius: Fixed: 4x Overall Diameter; Flexing: 5x Overall Diameter
• Temperature Range: -40°C to +90°C (Max. temp at conductor: +120°C)
• Water Resistance: AD8 immersion
• Weather / UV Resistance
• Ozone Resistance
• Halogen-Free
• Short Circuit Temperature: 250°C for 5 seconds
• Flame-Resistant Test: EN 60332-1-2
• Anticipated Service Life: 30 years

Electrical Parameters:

• Rated Voltage: DC: 1.5/1.5kV; AC: 1.0/1.0 kV (Max. permitted voltage: 1.8kV DC)
• Insulation Resistance: 1000MΩ/km
• Test Voltage (AC): 6.5kV, 50Hz, 5 min
• Conductor Resistance at 20°C: ≤ 0.164 Ω/km
